A disc that slips over a tub-spout stub-out.

Spout Splashguard

$62.50 per stack of 25 discs

It covers the wall opening around the pipe. Each stack has 25 discs. You pay by card at checkout.

SS-C-25, copper Smaller bore for 1/2 in copper tube Stacks

SS-C-25 is made to order. Most paid jobs are ready in 3 to 7 days.

SS-G-25, galvanized or brass Larger bore for 1/2 in galvanized steel or brass pipe Stacks

SS-G-25 is made to order. Most paid jobs are ready in 3 to 7 days.

This order ships. Pickup is not available.

View cart

What it is

A Spout Splashguard is a printed disc that slides onto the stub-out where a tub spout will go. It covers the rough opening so water running back along the spout is less likely to enter the wall.

It is a temporary cover. It is not a seal. It does not replace the spout, the pipe, or a code-listed fitting.

Technical info

SKU	Fits	Pack	Price
SS-C-25	1/2 in copper tube (smaller bore)	25 discs with separators	$62.50
SS-G-25	1/2 in galvanized steel or brass pipe (larger bore)	25 discs with separators	$62.50

Each disc is $2.50 in a stack of 25.
It ships to the address you enter at checkout. Pickup is not available. You choose the shipping method at checkout.
The discs, shipping, and sales tax are one card payment.

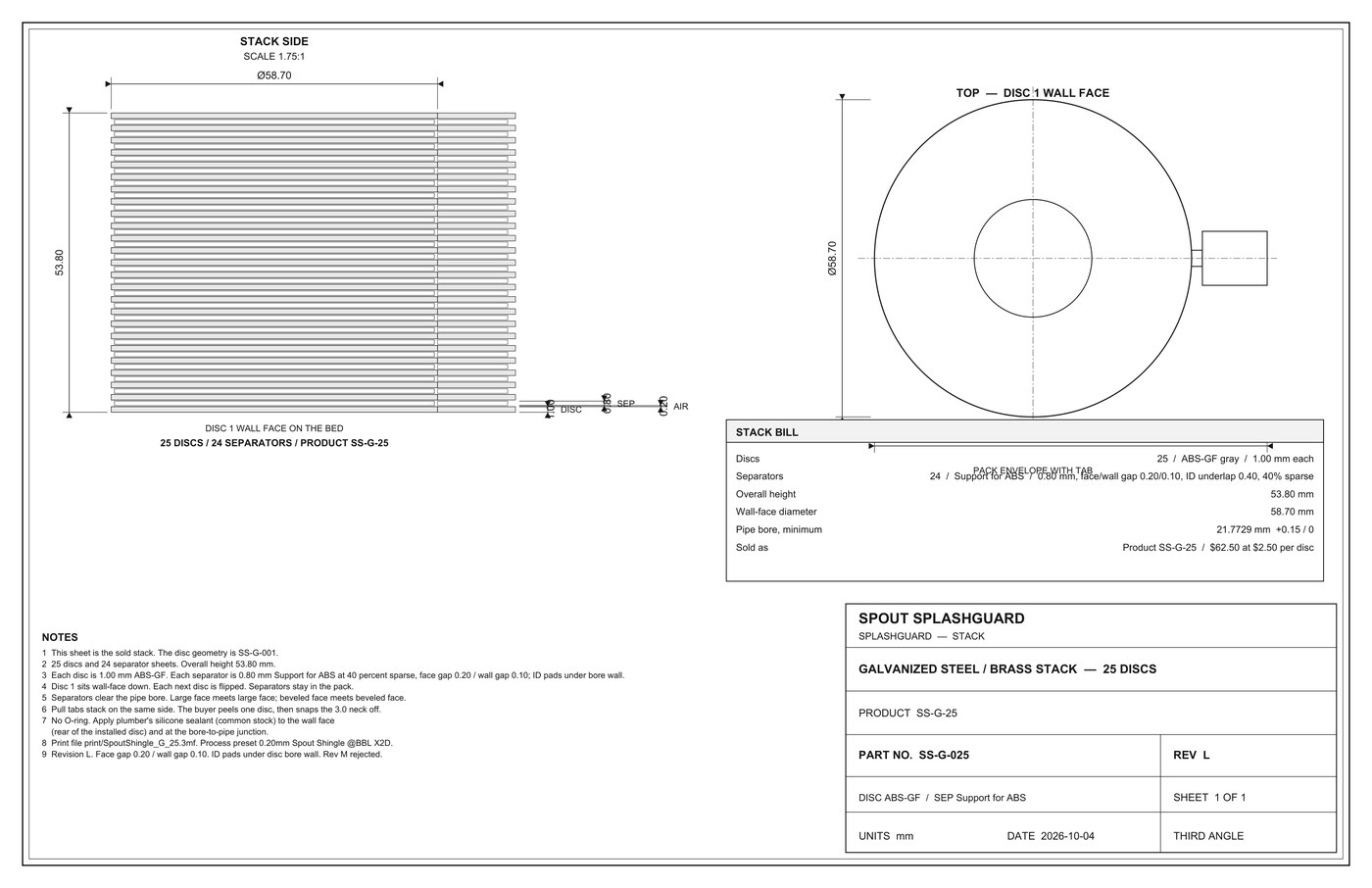

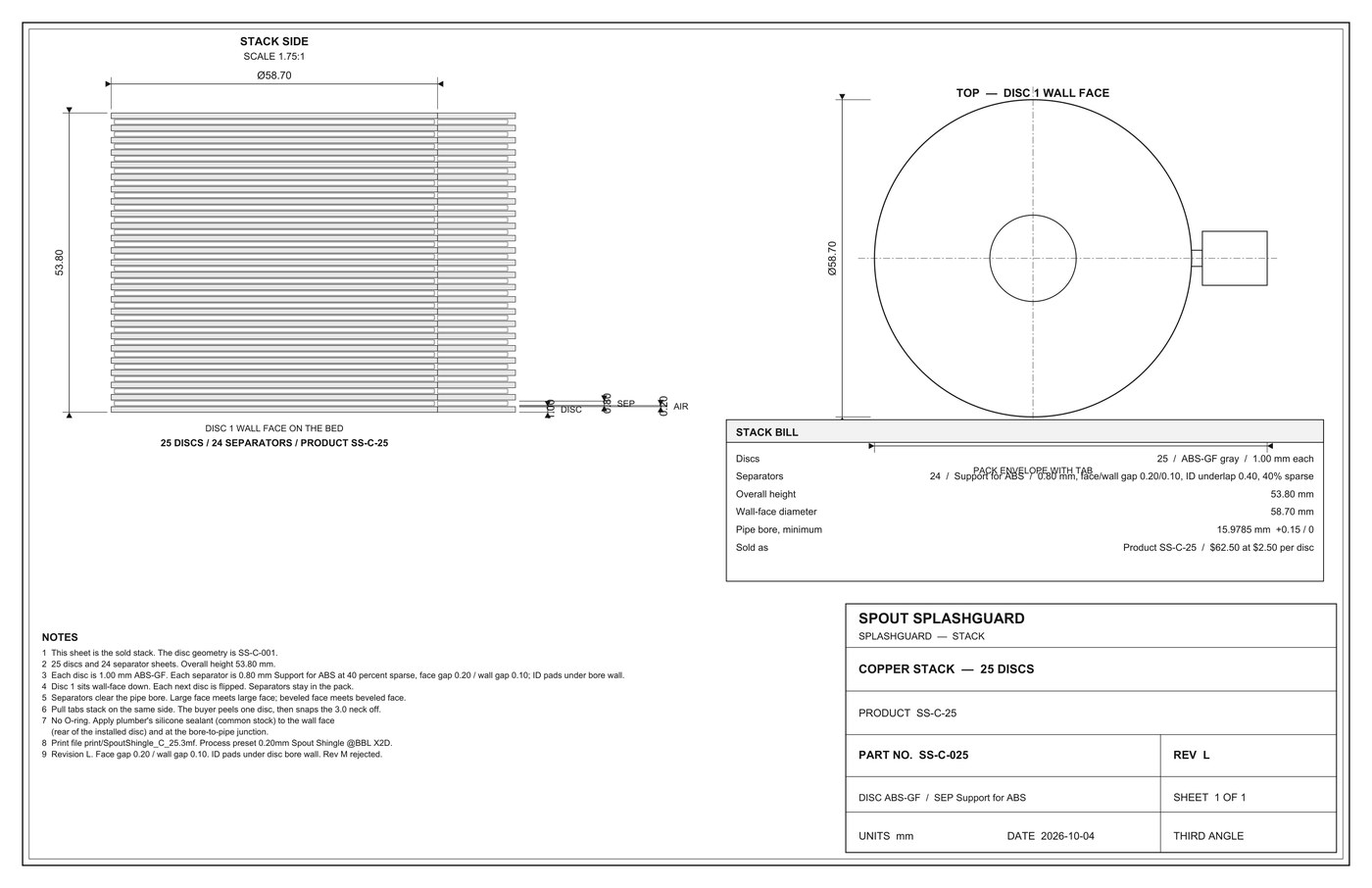

Drawings for SS-C-25 and SS-G-25.

Installation

Confirm the SKU matches the stub-out. Copper uses SS-C-25. Galvanized or brass uses SS-G-25.
Slide the disc over the stub-out so it sits flat on the wall.
Apply plumber's silicone on the wall face, behind the disc, and where the bore meets the pipe.
Let the sealant cure as the label directs before the area gets wet.

This is a temporary cover, not a listed waterproofing system. Follow trade practice and local code for the spout and the wall.
